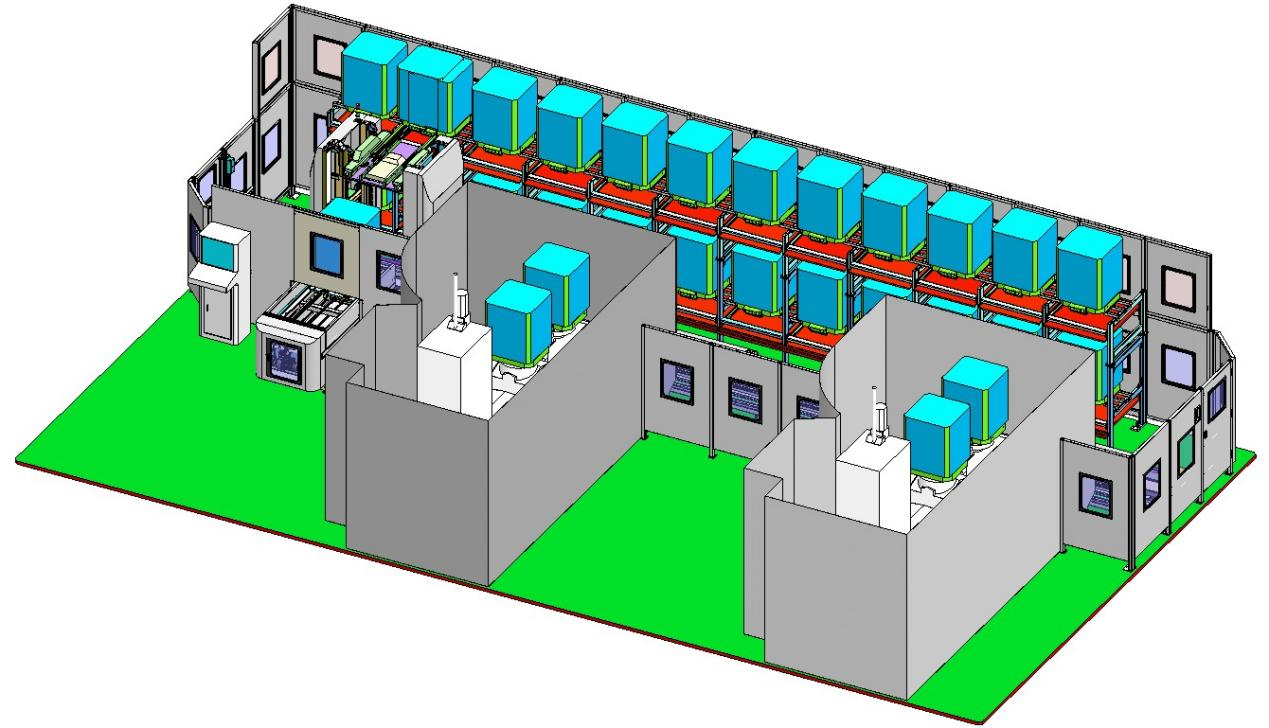

FMS Production Line of Standard 630 Horizontal Machining Center

Details

item	content
style 1: tray size	630mm×630mm（outer width of pallet）
Style 2: spacing between extension arms	600mm
tooling outer diameter	1050mm
tooling height	1300 mm
load (machine table & work piece)	≤2000kg
maximum number of machining centers	16
maximum number of loading stations	8
maximum number of workbenches (number of goods)	240

RGV Technical Parameters:

load	2000 kg（pallet 300kg & workpiece 1500kg）
item	A-axis (traveling axis)	B-axis (lifting shaft)	C-axis (conveying shaft)
maximum speed	80m/min	2.5m/min	40m/min
maximum stroke	50 m	1512 mm	1310mm
driving mode	Single-side gear rack	double-side gear rack	Style 1: single-side gear rack Style 2: double-sided gear rack
positioning accuracy	±2 mm	±2 mm	±2 mm
electric machinery	servo motor (with band brake) 5kw	servo motor (with band brake) 3.5kw	servo motor (with band brake) 2kw
others	cam driven bearing & hard rail guide,cast iron roller drive for casting polyurethane	guides & sliders	cam driven bearing & self-made track
